Joining Wires the Solder-Free Way

1. Why Bother Avoiding Solder Anyway?

Let's face it, soldering can be intimidating. The fumes, the heat, the potential for accidentally fusing your fingers together — not exactly a relaxing afternoon project. And let's not forget the equipment! You need a soldering iron, solder, maybe some flux...it adds up. Sometimes you just want a quick, reliable connection without all the fuss.

Plus, in certain situations, soldering might not even be the best option. Think sensitive electronics where heat could cause damage, or locations where using an open flame is a big no-no. That's where solderless connectors really shine. They offer a safer, often simpler alternative, especially for beginners or those working in cramped spaces.

So, if you're looking for a less intense way to connect wires, you've come to the right place. We're going to explore several methods for joining wires without solder, from the basic to the slightly more advanced (but still totally doable!).

We will guide you through all available option in details. With all the information, you should be able to determine which method is best for you

Wire Connectors

2. Twist-On Wire Connectors (Wire Nuts)

These are probably the most common type of solderless connector you'll find. You know, those little colored caps? They're super easy to use. Just strip the ends of the wires you want to connect (making sure the exposed wire length matches the connector's specifications), twist the wires together clockwise, and then screw the wire nut onto the twisted ends. The internal threads of the wire nut grip the wires, creating a secure connection.

The key here is to get a good, tight twist before applying the wire nut. This ensures a solid mechanical connection and prevents the wires from slipping out. Also, make sure you're using the right size wire nut for the number and gauge of wires you're connecting. Using a wire nut that's too small can lead to a loose connection, while one that's too big won't grip the wires properly.

Don't overtighten! You might risk damaging the wire nut. A firm, snug fit is all you need. And always give the wires a gentle tug after connecting to make sure they're secure. Safety first, always!

Wire nuts are great for general purpose connections, inside a junction box, or anything that requires easy access. They are generally safe, but need to be installed properly. Please read instruction before using!

3. Push-In Wire Connectors

These are a bit newer to the scene, but they're gaining popularity for their simplicity. Instead of twisting wires together, you simply strip the ends and push them into the connector. Internal spring-loaded clamps grab the wires and hold them in place, creating a reliable connection.

Push-in connectors are particularly useful in tight spaces where twisting wires can be difficult. They also tend to create neater, more organized connections, which is always a plus. The best part? They're reusable! Most push-in connectors have a release mechanism that allows you to remove the wires if you need to make changes or troubleshoot.

Again, make sure you're using the right size connector for the gauge of wire you're using. Some connectors are designed for solid wire only, while others can accommodate both solid and stranded wire. Check the manufacturer's specifications before you start.

These are very easy to use and provide better connections. Some of these connectors even allow you to check the voltage through a hole they provide. That's neat!

Terminal Blocks

4. Screw Terminal Blocks

Terminal blocks are a great way to create organized and easily accessible connections, especially when you have multiple wires to connect. They consist of individual terminals, each with a screw that clamps down on the wire. Simply strip the end of the wire, insert it into the terminal, and tighten the screw. Done!

Screw terminal blocks are often used in control panels, electrical enclosures, and other applications where a clean and professional look is important. They also make it easy to disconnect and reconnect wires if you need to make changes or troubleshoot the circuit.

When using screw terminal blocks, be careful not to overtighten the screws. This can damage the wires or the terminal block itself. A firm, snug fit is all you need. Also, consider using ferrule crimps on the ends of stranded wires before inserting them into the terminal block. This will prevent the strands from fraying and ensure a more secure connection.

These blocks are commonly used to protect and organized wire connections that are connected to other component, such as power supplies, or PCB board.

5. Spring Clamp Terminal Blocks

Similar to screw terminal blocks, spring clamp terminal blocks use spring pressure instead of screws to hold the wires in place. They're often considered more reliable than screw terminals, as they're less susceptible to loosening due to vibration or temperature changes.

To use a spring clamp terminal block, you typically insert a small screwdriver or release tool into a slot to open the clamp, then insert the wire and release the tool. The spring clamp then snaps shut, securely gripping the wire.

Spring clamp terminal blocks are a good choice for applications where vibration is a concern, or where you need a maintenance-free connection. They're also typically smaller and more compact than screw terminals, making them ideal for tight spaces.

One thing to keep in mind, spring pressure might be low due to age. So always buy new stock terminal block for the best performance!

Crimp Connectors

6. Butt Connectors

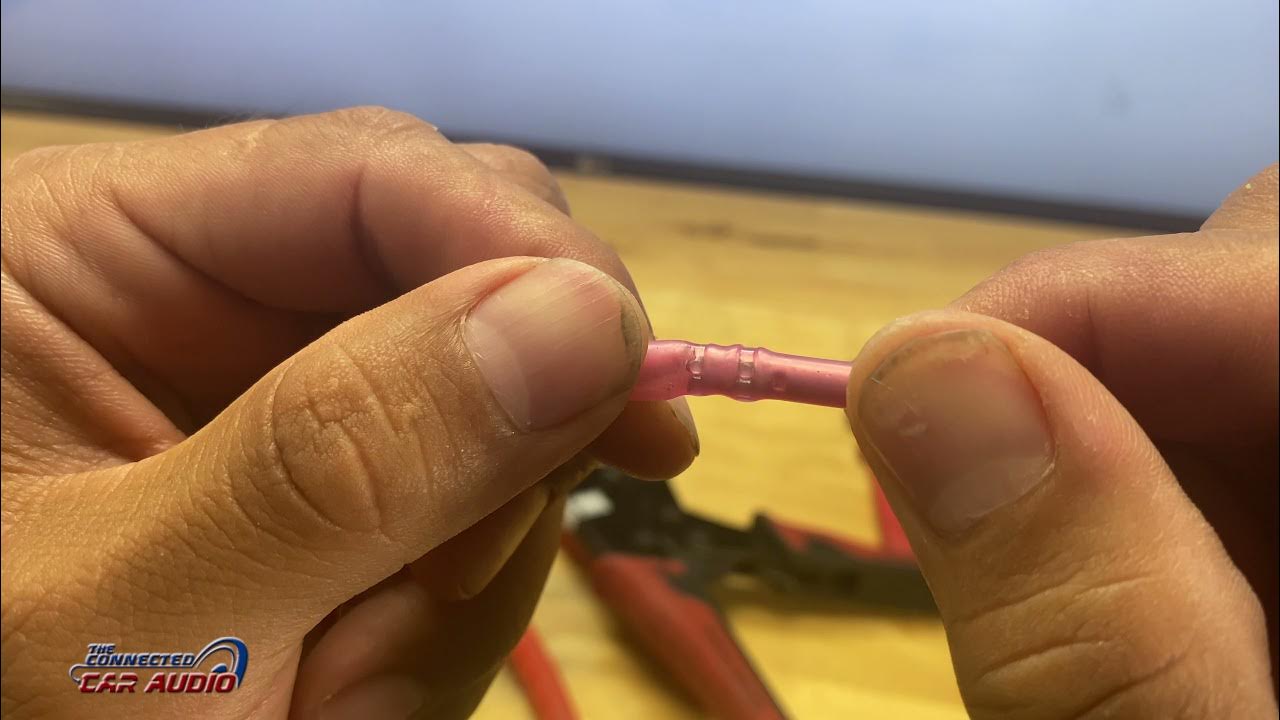

Butt connectors are a staple in automotive wiring and other applications where you need to join two wires end-to-end. They're simple, reliable, and relatively inexpensive. To use a butt connector, strip the ends of the wires, insert them into the connector, and crimp the connector using a crimping tool.

The key to a good crimped connection is to use the right crimping tool and to apply enough pressure to properly deform the connector and create a tight, gas-tight seal. This prevents corrosion and ensures a long-lasting connection. There are different types of crimping tools available, so make sure you choose one that's designed for the type of butt connector you're using.

After crimping the connector, give the wires a good tug to make sure they're securely connected. If the wires pull out easily, you didn't crimp them properly and you'll need to start over with a new connector.

Always use a proper crimping tools. Never crimp with just pliers. That's not a proper crimp!

7. Spade and Ring Terminals

Spade and ring terminals are used to connect wires to screw terminals or other connection points. Spade terminals have a forked shape that allows you to slip them under a screw head without completely removing the screw, while ring terminals have a closed loop that provides a more secure connection.

To use a spade or ring terminal, strip the end of the wire, insert it into the terminal, and crimp the terminal using a crimping tool. Again, make sure you're using the right crimping tool for the type of terminal you're using. After crimping, give the wire a tug to make sure it's securely connected.

Spade and ring terminals are often used in automotive wiring, appliances, and other applications where you need to make a reliable connection to a screw terminal.

These provide a good way to connect and disconnect as needed. very useful for testing purposes or connection that need to be detached frequently

Insulation Displacement Connectors (IDC)

8. IDC Connectors

Insulation displacement connectors (IDCs) are designed to make connections without requiring you to strip the wires first. The connector has sharp metal blades that pierce the insulation and make contact with the conductor when you press the connector together. This makes them incredibly fast and easy to use.

IDCs are commonly used in low-voltage applications, such as telephone wiring and data cables. They're also often used in automotive wiring for connecting sensors and other components. To use an IDC connector, simply insert the wires into the connector and press the connector together using a special tool or pliers. The blades will pierce the insulation and make a secure connection.

While IDCs are convenient, they're not always the most reliable option. The connection can be susceptible to corrosion and loosening over time, especially in harsh environments. Also, IDCs are typically only suitable for connecting wires of the same gauge.

These are quick, but can be easily detached or corrode. So be careful when using these.

So there you have it! A whole bunch of ways to connect wires without resorting to soldering. Each method has its pros and cons, so choose the one that best suits your needs and the specific application. And remember, always prioritize safety! Turn off the power before working on any electrical circuits, and double-check your connections to make sure they're secure.

Safety First (and Always!)

9. Disconnect Power First

Seriously, this is the most important step. Before you even think about touching any wires, make absolutely sure the power is off. Flip the breaker, unplug the appliance, whatever it takes. Electricity is not something to mess around with. Think of it as a grumpy, invisible dragon — best to keep it asleep before poking around its lair.

10. Use the Right Tools

Trying to strip wires with your teeth? Bad idea. Using the wrong crimping tool? Also bad. Invest in the right tools for the job. It'll make your life easier, and more importantly, it'll make your work safer. Wire strippers, crimping tools, voltage testers — these are your friends.

11. Check Your Connections

Once you've made your connections, give them a good once-over. Tug on the wires gently to make sure they're secure. Visually inspect the connectors to make sure they're properly seated and there are no loose strands of wire sticking out. A little bit of extra attention here can prevent problems down the road.

After checking all the safety measures and following the proper tools and procedure, congratulations! You are ready to tackle the problem!
